StarTech 12-Outlet Rackmount PDU 1U Server Power Strip Wide-Spaced Right-Angle Ports Mounted Power Distribution Unit for 19in Racks

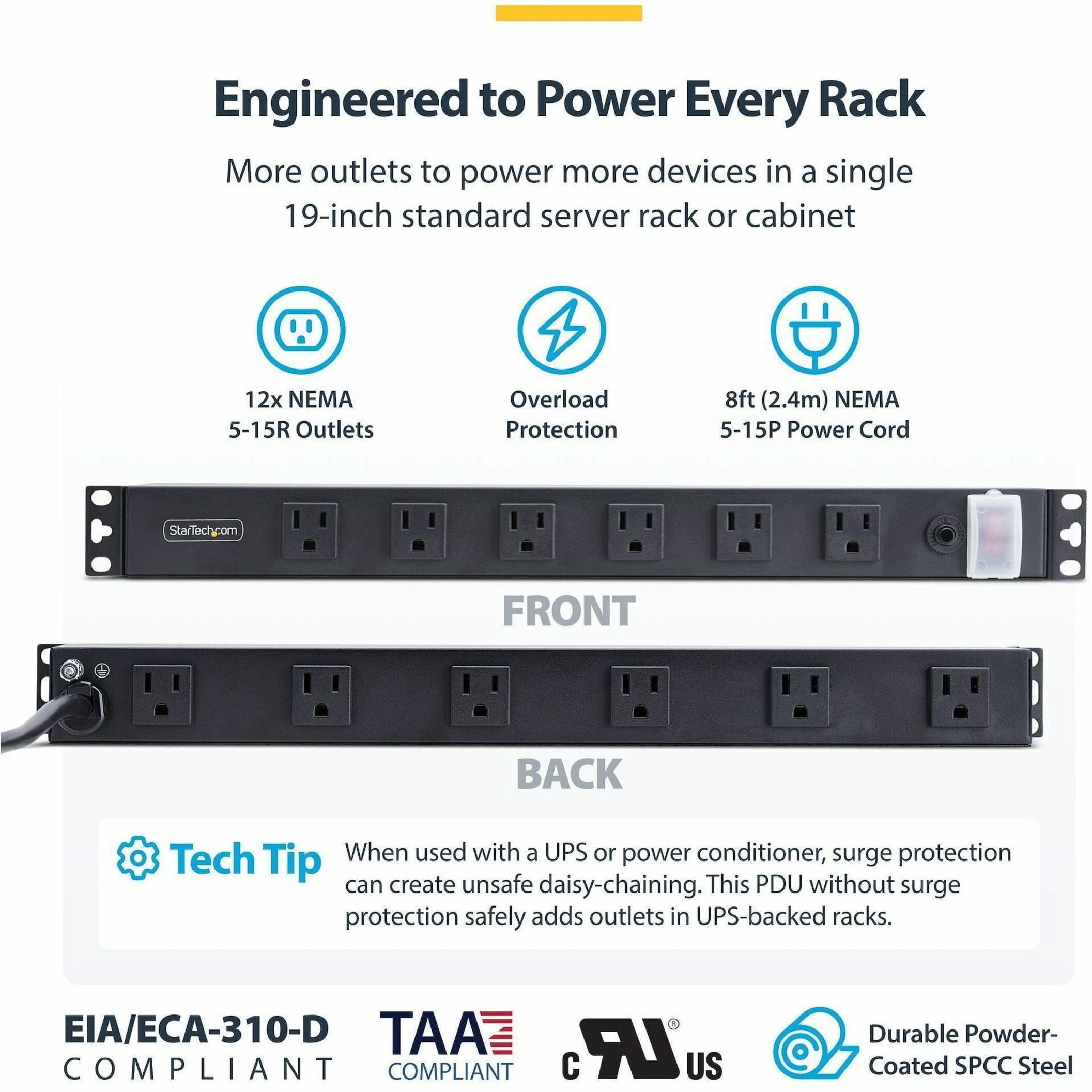

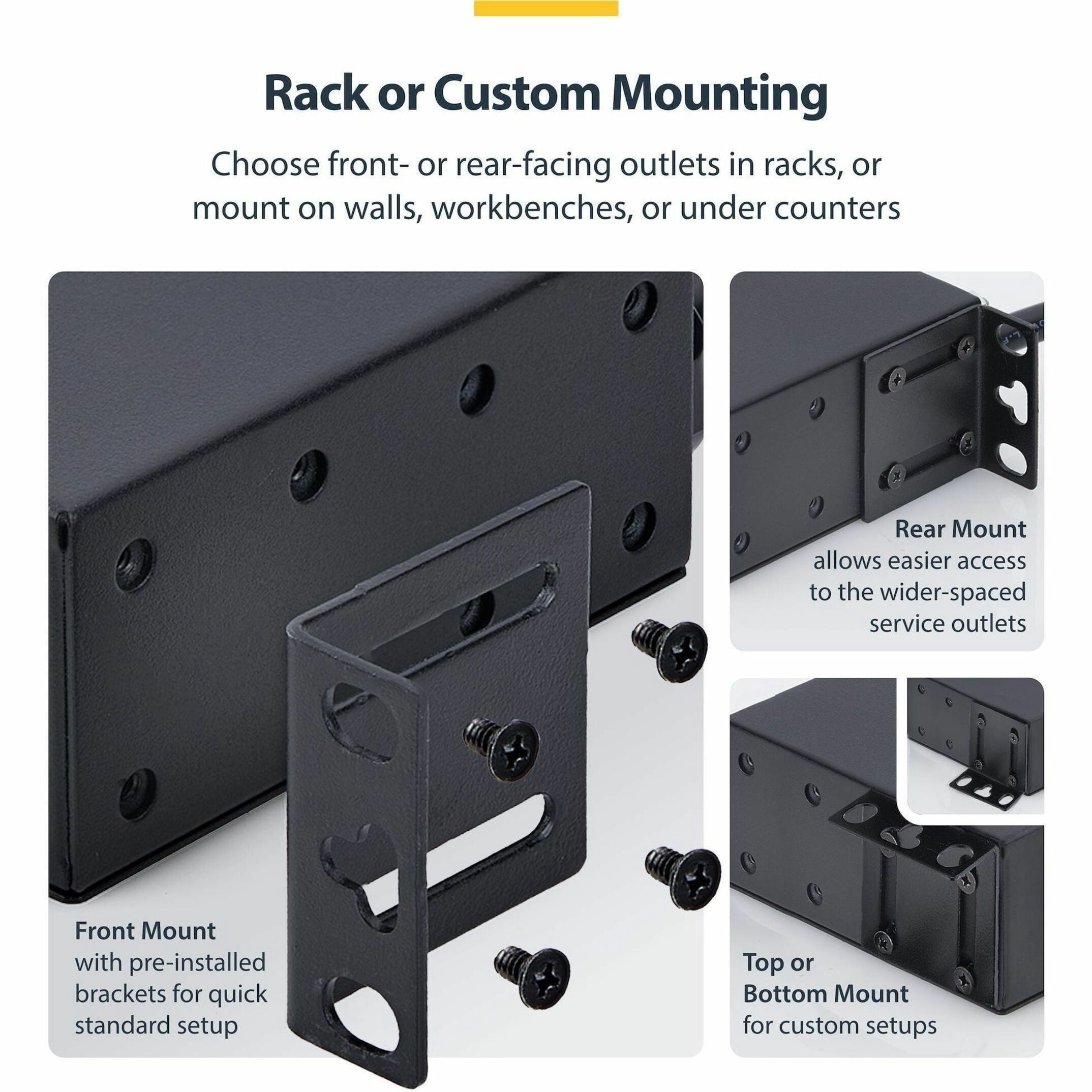

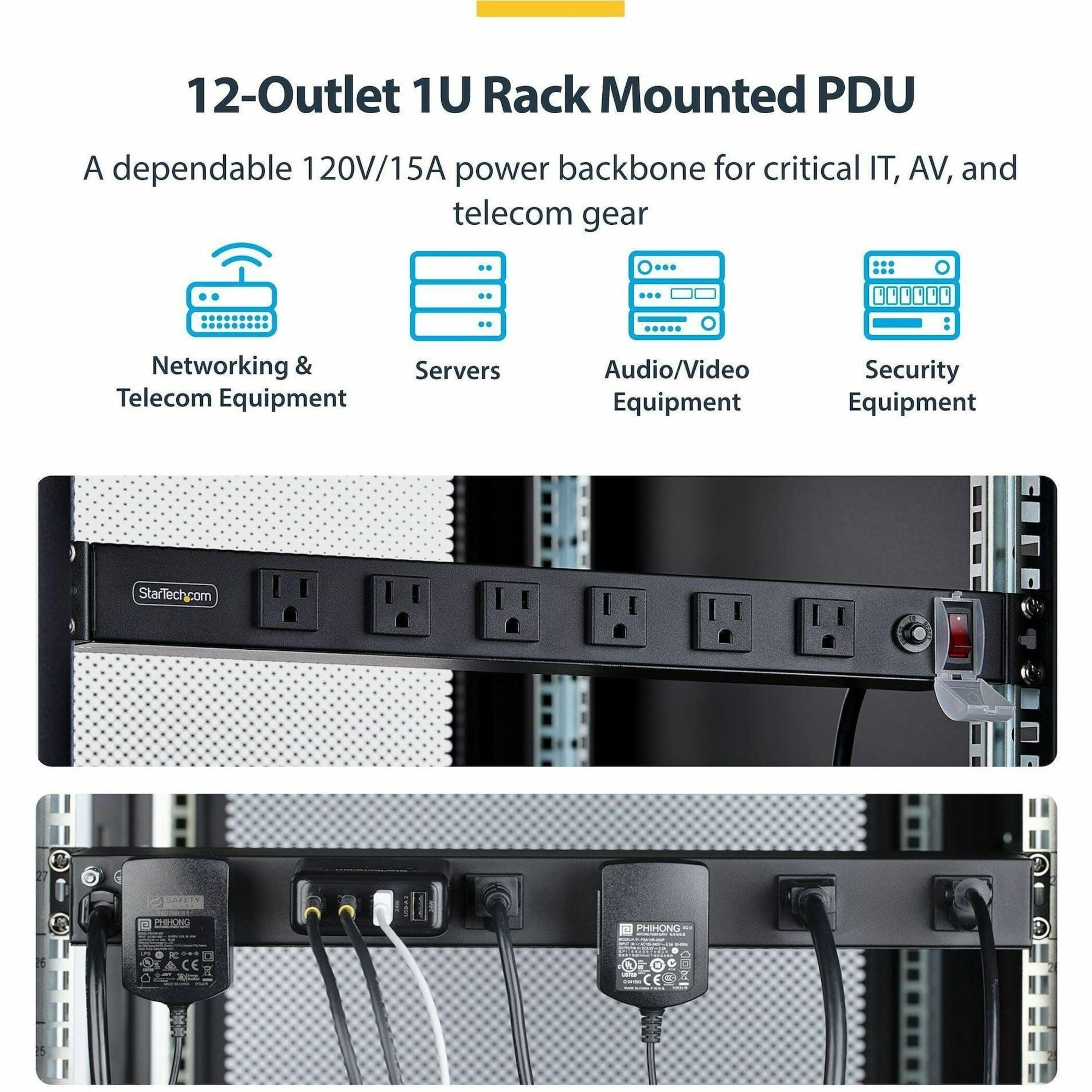

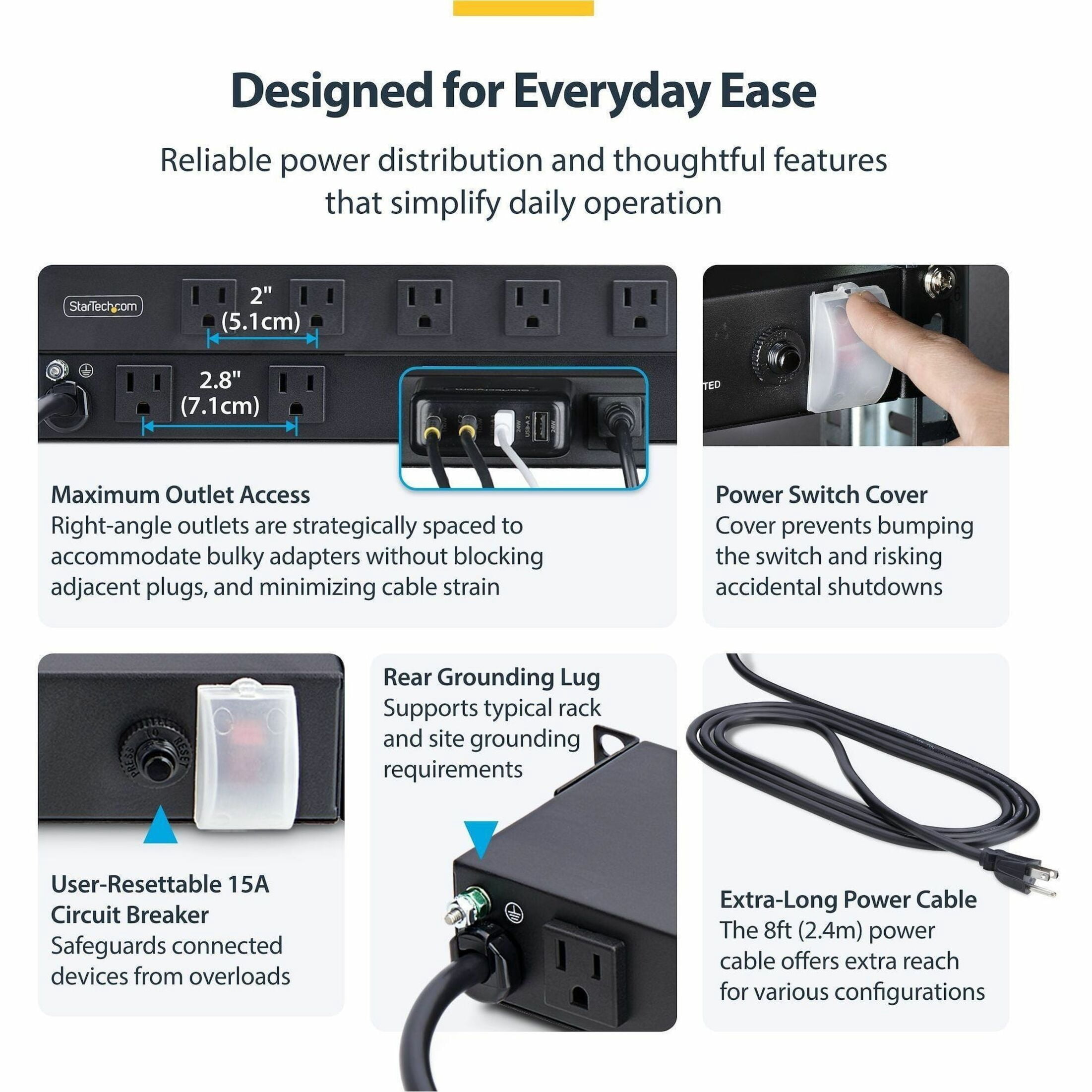

<div class="product_header">General Information</div><table class="product_table"><tbody><tr><td class="product_attribute_value" colspan="2"><p>Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 12 NEMA 5-15 right-angle outlets with generous spacing for oversized adapters, a built-in circuit breaker, and versatile mounting options, making it a dependable power backbone for critical deployments.</p><p><b>Maximize Connectivity in High-Density Racks</b></p><p>Designed for dense IT and AV environments this unit powers up to 12 devices through 6x front and 6x rear-facing NEMA 5-15 outlets. The right-angle ports create a 2-inch (5.1cm) spacing between outlets letting you accommodate oversized plugs without blocking neighboring outlets.</p><p><b>Built-in circuit Protection for Critical Hardware</b></p><p>The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.</p><p><b>Flexible Mounting</b></p><p>Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.</p></td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Technical Information</div><table class="product_table"><tbody><tr><td class="product_attribute">Plug/Connector Type:</td><td class="product_attribute_value">NEMA 5-15P</td></tr><tr><td class="product_attribute">Plug/Connector Detail:</td><td class="product_attribute_value">1 x NEMA 5-15P</td></tr><tr><td class="product_attribute">Receptacle Type:</td><td class="product_attribute_value">NEMA 5-15R</td></tr><tr><td class="product_attribute">Receptacle Detail:</td><td class="product_attribute_value">12 x NEMA 5-15R</td></tr><tr><td class="product_attribute">Protection Type:</td><td class="product_attribute_value">Overload Protection</td></tr><tr><td class="product_attribute">Features:</td><td class="product_attribute_value">LED Status Indicator</td></tr><tr><td class="product_attribute">Load Capacity (VA):</td><td class="product_attribute_value">1500 W</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Power Description</div><table class="product_table"><tbody><tr><td class="product_attribute">Input Voltage:</td><td class="product_attribute_value">120 V AC</td></tr><tr><td class="product_attribute">Output Voltage:</td><td class="product_attribute_value">120 V AC</td></tr><tr><td class="product_attribute">Output Voltage:</td><td class="product_attribute_value">125 V AC</td></tr><tr><td class="product_attribute">Input Current:</td><td class="product_attribute_value">15 A</td></tr><tr><td class="product_attribute">Circuit Breaker:</td><td class="product_attribute_value">Yes</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Physical Characteristics</div><table class="product_table"><tbody><tr><td class="product_attribute">Color Family:</td><td class="product_attribute_value">Black</td></tr><tr><td class="product_attribute">Product Color:</td><td class="product_attribute_value">Black</td></tr><tr><td class="product_attribute">Product Material:</td><td class="product_attribute_value">Steel</td></tr><tr><td class="product_attribute">Finishing:</td><td class="product_attribute_value">Powder Coated</td></tr><tr><td class="product_attribute">Mounting Orientation:</td><td class="product_attribute_value">Horizontal/Vertical</td></tr><tr><td class="product_attribute">Mount Type:</td><td class="product_attribute_value">Rack-mountable</td></tr><tr><td class="product_attribute">Mount Type:</td><td class="product_attribute_value">Cabinet-mountable</td></tr><tr><td class="product_attribute">Form Factor:</td><td class="product_attribute_value">Rack</td></tr><tr><td class="product_attribute">Form Factor:</td><td class="product_attribute_value">Horizontal</td></tr><tr><td class="product_attribute">Rack Height:</td><td class="product_attribute_value">1U</td></tr><tr><td class="product_attribute">Cord Length:</td><td class="product_attribute_value">7.87 ft</td></tr><tr><td class="product_attribute">Height:</td><td class="product_attribute_value">1.7"</td></tr><tr><td class="product_attribute">Width:</td><td class="product_attribute_value">3.7"</td></tr><tr><td class="product_attribute">Length:</td><td class="product_attribute_value">18.8"</td></tr><tr><td class="product_attribute">Weight (Approximate):</td><td class="product_attribute_value">3.57 lb</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Miscellaneous</div><table class="product_table"><tbody><tr><td class="product_attribute">Package Contents:</td><td class="product_attribute_value"><ul><li>1215B8H-RACK-PDU-RA</li><li>2 x Mounting Brackets (Pre-Installed)</li><li>4 x M5 Cage Nuts</li><li>4 x M5x12mm Rack Screws</li><li>1 x Product Documentation</li></ul></td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">IT Equipment</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Office</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Data Center</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Server Rack/Cabinet</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Server Room</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">A/V Equipment</td></tr><tr><td class="product_attribute">Certifications &amp; Standards:</td><td class="product_attribute_value"><ul><li>UL 1363</li><li>EIA/ECA-310-E</li></ul></td></tr><tr><td class="product_attribute">TAA Compliant:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Restriction of Hazardous Substances (RoHS)</td></tr><tr><td class="product_attribute">UL Listed:</td><td class="product_attribute_value">Yes</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Warranty</div><table class="product_table"><tbody><tr><td class="product_attribute">Limited Warranty:</td><td class="product_attribute_value">2 Year</td></tr></tbody></table>

• 1215B8H-RACK-PDU-RA

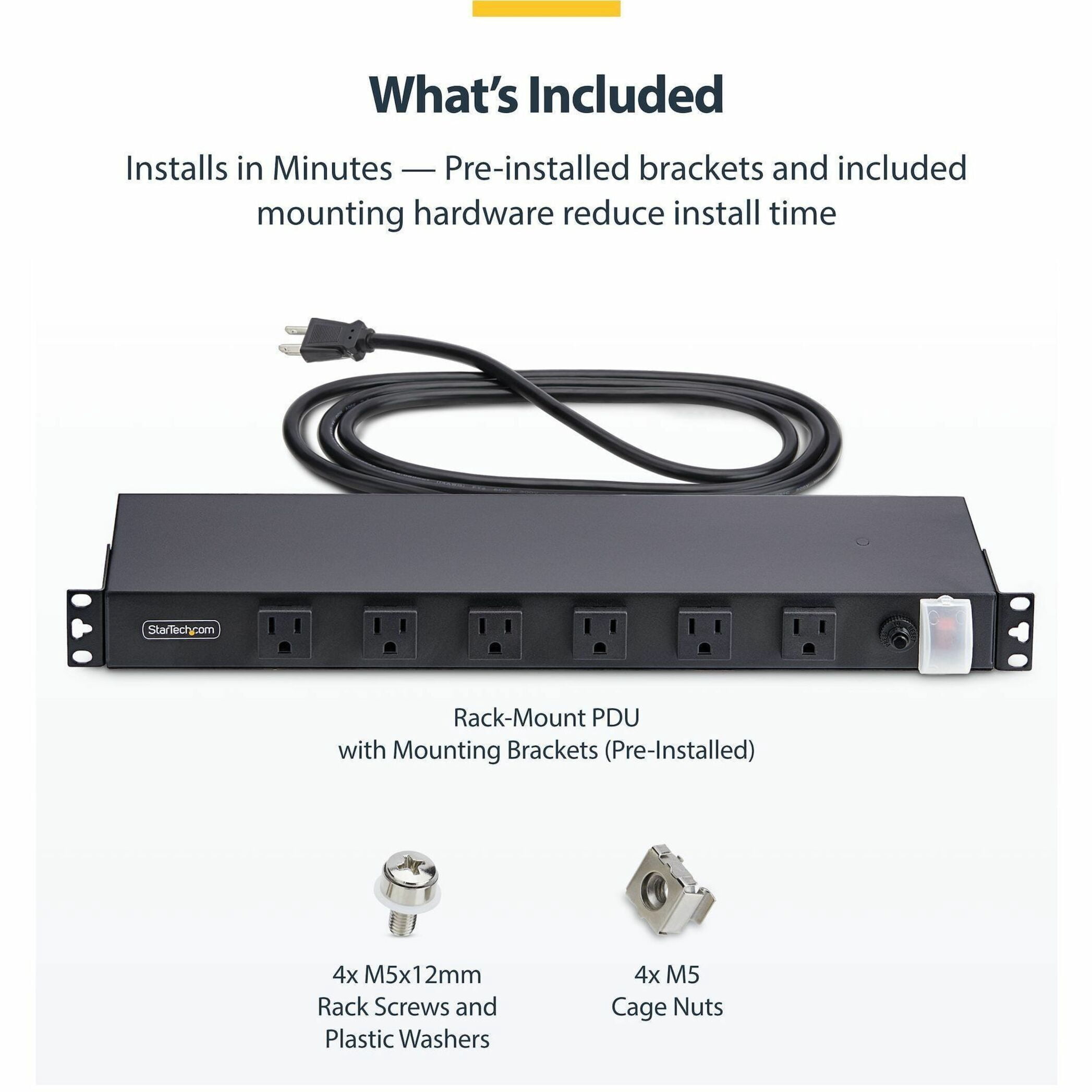

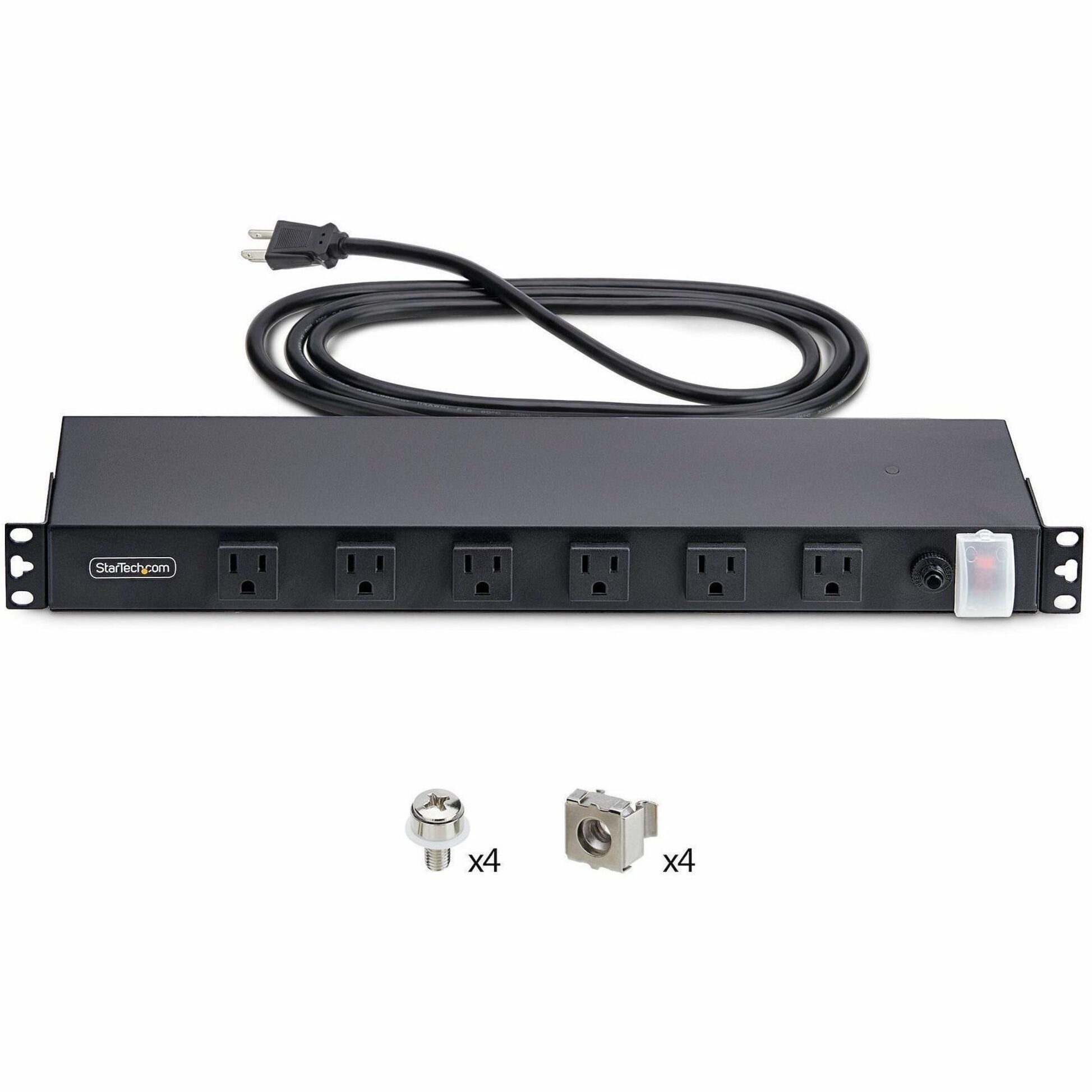

• 2 x Mounting Brackets (Pre-Installed)
• 4 x M5 Cage Nuts
• 4 x M5x12mm Rack Screws
• 1 x Product Documentation
• UL 1363
• EIA/ECA-310-E
